    MRC+ GH

    Part of our refrigeration range, the MRC+ GH refrigeration heat recovery system provides outstanding running cost savings with a fast payback.

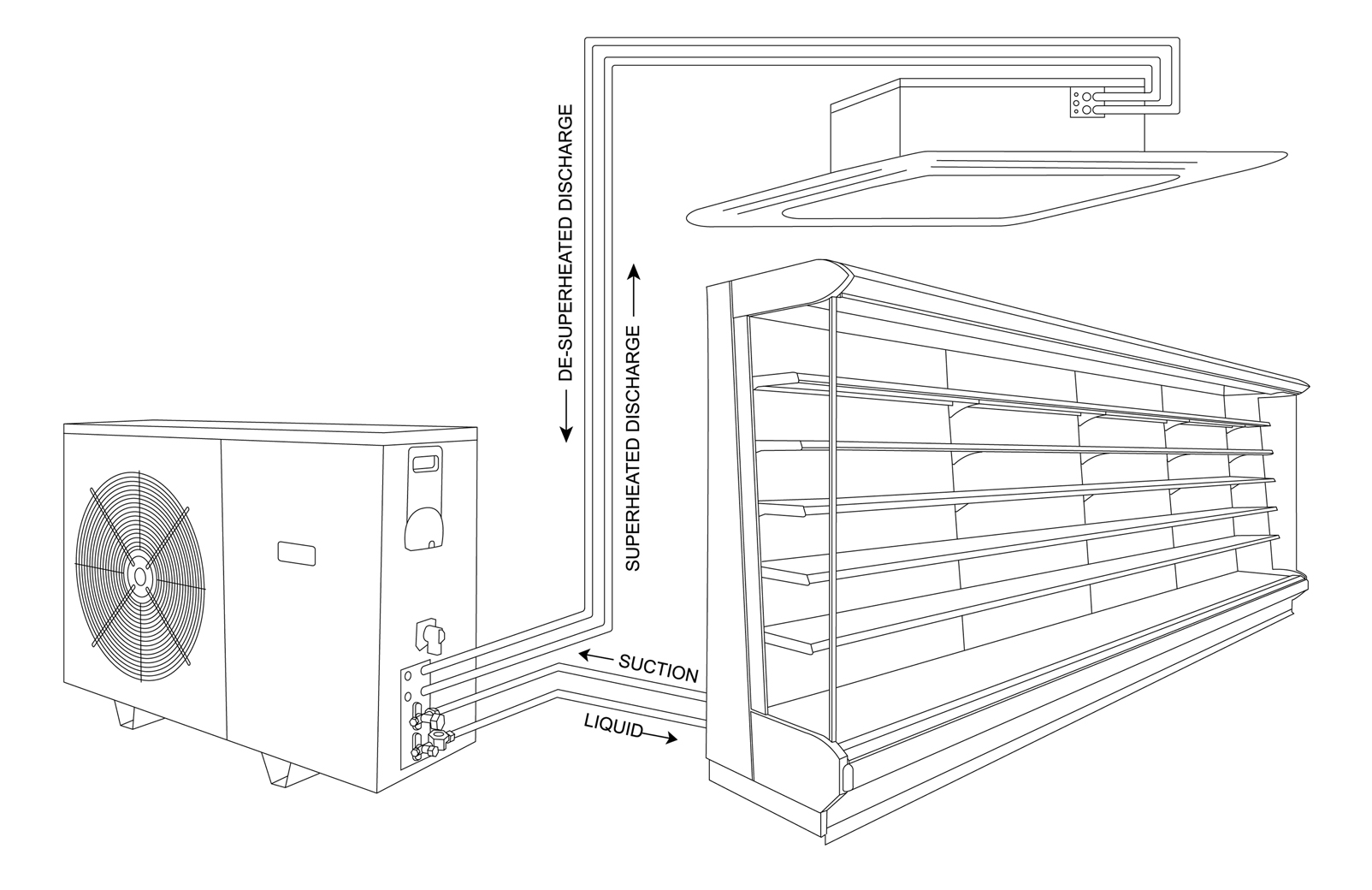

    The heat is recovered directly into the store through our extremely successful and proven CC600MGH which combines rapid installation and ease of maintenance. All the features and benefits of the current MRC+ & MRC+LT range with additional valves which allow the discharge gas to be redirected to a heat recovery device such as the GreenHeat cassette. Alternatively, recovered heat can be transferred to water via a plate heat exchanger or specially designed water tank.

    Supplied complete with solenoid valves and pipework connections for quick connection to the heat recovery device.


    • Electrics access door for ease of installation
    • Internal sight glass for added protection
    • Adjustable pressure switches for improved pump down operation
    • Gomax pressure couplers to prevent damage
    • Reorganised electrics for a neater finish
    • Crank case heater for extra compressor safety
    • Self retaining screws for easier maintenance
    • Heat recovery cassette
    • Low sound levels
    • Long air throws
    • 3 or 4 way air discharge
    • Removable, lightweight, one-piece chassis
    • Integral, easy to clean, drain tray
    • Easy accessed long life washable filters
    • Modern, slim, square fascia with rounded corners
    • All services accessed from one corner
    • Access to coil from all sides for easy cleaning
    • Fan guard for safety
    • Fresh air inlet provision and branch duct provision
    • Fan speed range selectable by the installer to suit the application
    • Heat recovery condensing unit MRC+GH
    • Suction and liquid service values
    • Fan speed control
    • HP protection switches with auto reset
    • LP protection switches with auto reset & alarm
    • 3 minutes start delay timer with low ambient start
    • Crankcase heater (reciprocating only)
    • Liquid receiver
    • Emerson UK Compressors MRC 45-180
    • Tecumseh Compressors MRC 15-40
    • Capacitor start relay (15-40 1Ph only)
